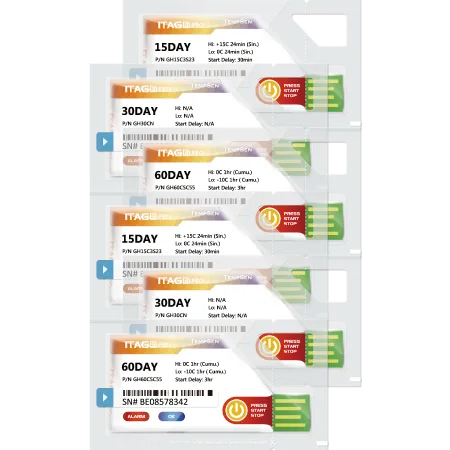

ITAG3 Pro
Single-use USB Temperature Data Logger
USB
PDF Report
Temperature
Factory Pre-programmed
Loggers are pre-programmed in factory with custom parameters you need, accelerating the dispatch of your cold chain goods with start & go.
PDF Report Embedded with Extractable Raw Data
Automatically generates encrypted PDF format report, no software required to access data file. PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data. Embedded standard format raw data allows further data processing via TempSen Cloud and 3rd party system.
Air Freight Compliance
Complies with IATA PI970 II and RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air shipment in active status.
- Built-in USB connector
- Cost effective and super easy to use
- No software is needed for downloading data
- Compact size fits into any space limited shipping boxes
- Food-safety and water-proof packaging complies with IP67 protection class
Specifications
| Usage | Single Use |
| Sensor | Internal NTC Sensor |
| Memory | 7200 readings |
| Measurement Range | -30°C ... +70°C |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C/°F |
| Start Mode | Manual Start |
| Logging Interval | 1 minute to 2 hours |
| Battery | 3.0V lithium battery |
| Battery Life | 90 days max |
| Shelf Life | 12 months |
| Buttons | Start / Stop |
| Display | LED OK, Alarm, Running Status |
| Auto Data File | Encrypted PDF report with embedded raw data |
| Communication | USB 2.0 |
| Software | TempSen Express Desktop Software |
| System Requirements | Windows 10 / 11 (64-bit) |
| Calibration | Factory 6-point sampling calibration (AQL 0.25) |
| Certifications | CE, EN12803, RTCA-DO160G, IATA PI970 II, RoHS, WEEE, Manufacturer's Validation Certificate |
| Protection Class | IP67 |
| Dimensions | 80mm L x 47mm W x 4mm H |
| Weight | Approx. 10g |
